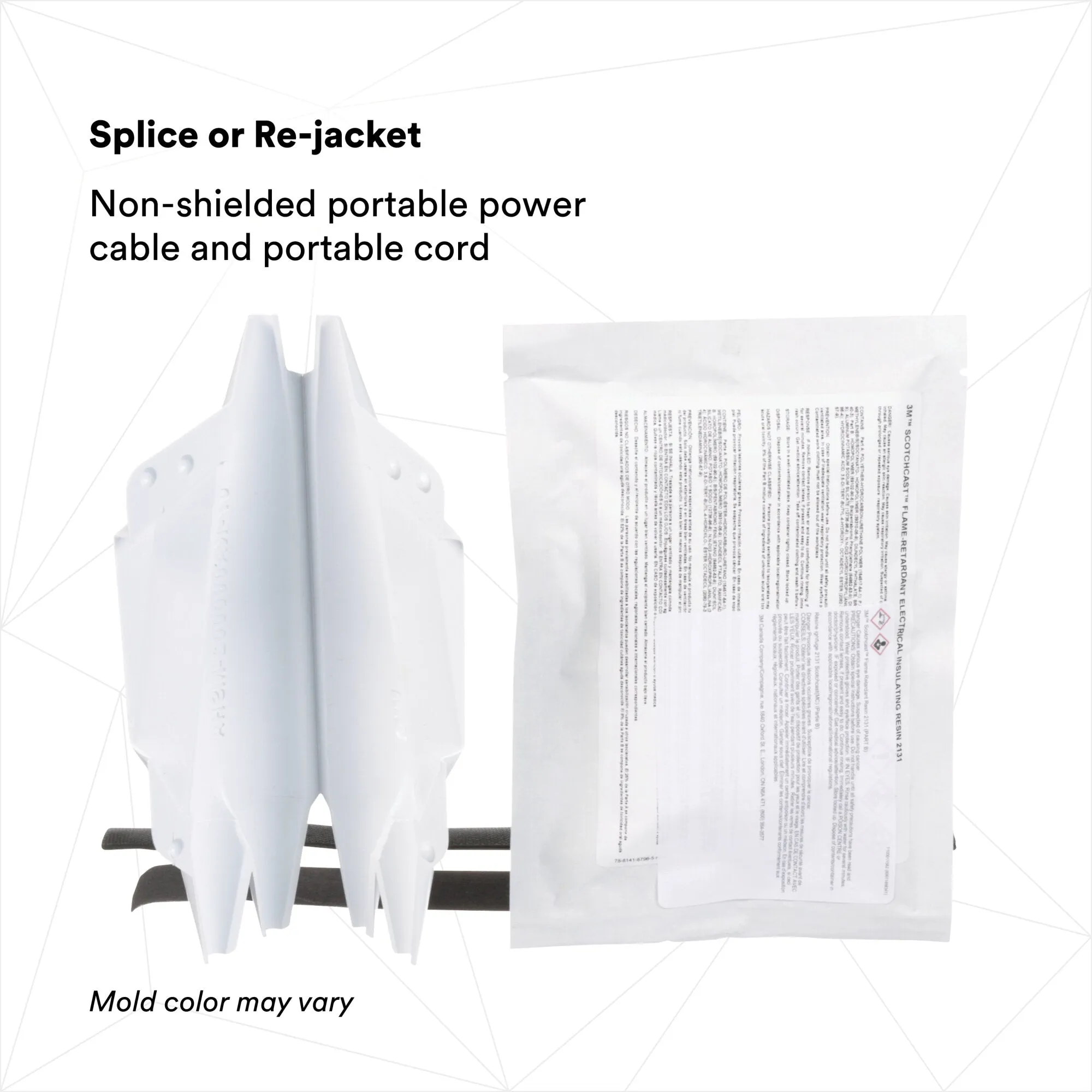

General Information
Brand
Scotchcast™
Cable Type
multi core, non shielded, rubber insulated reeling cables
Model
Cast Resin
Product Series
82-B Series

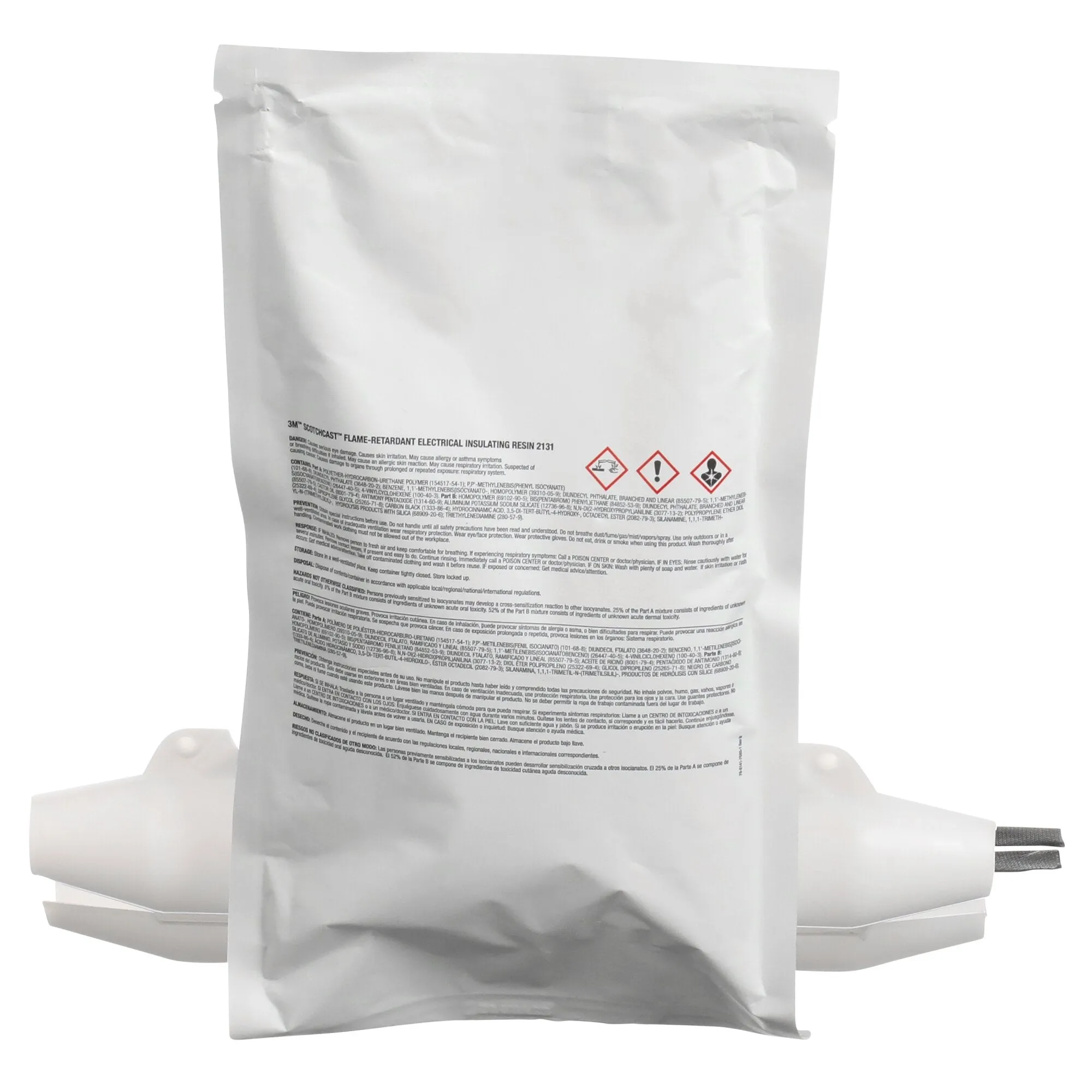

Resin Type
SC 2131

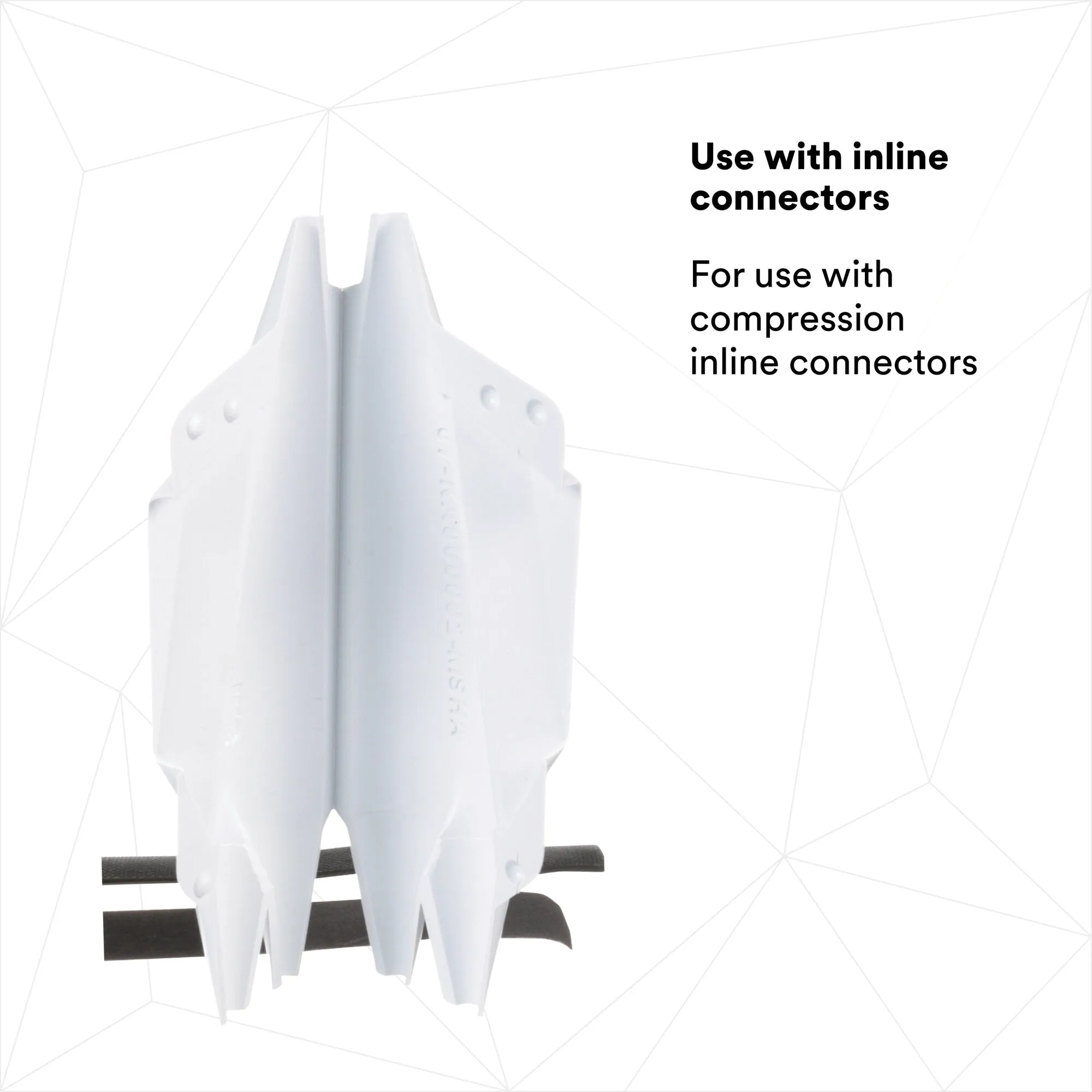

Splice Type
Inline
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Cable Outside Diameter Range
0.80-1.20 inch
Conductor Sizes (Imperial)
Single Conductor - 2/0-4/0 AWG
Connection Max Outside Diameter
Single Conductor - 0.82 inch
Insulation Outside Diameter Range
0.80 - 1.20 Inch
Insulation Outside Diameter Range (Metric)
20.0 - 30.0 mm
Maximum Conductor Size (Imperial)
4/0 AWG
Maximum Conductor Size (Metric)
120 mm²
Maximum Insulation Outer Diameter (Imperial)
1.2 in
Maximum Insulation Outer Diameter (Metric)
30.0 mm
Maximum Operating Voltage
5 Kilovolt
Minimum Conductor Size (Imperial)
4/0 AWG
Minimum Conductor Size (Metric)
120 mm²
Minimum Insulation Outer Diameter (Imperial)
0.8 in
Minimum Insulation Outer Diameter (Metric)
20 mm

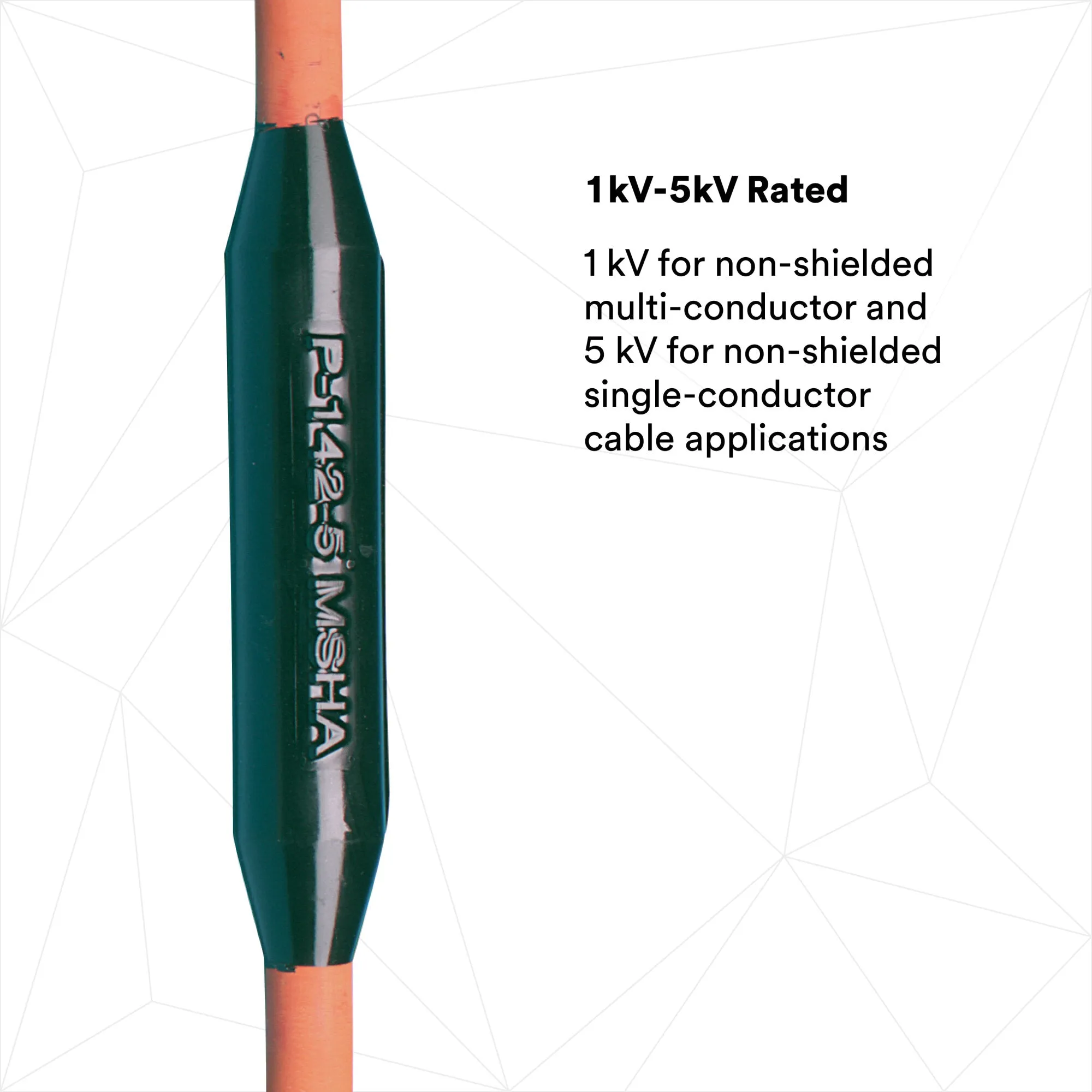

Voltage
5 kV (single), 1 kV (multiple)
Voltage Application
Low Voltage
Voltage Rating
0.6/1 kV
Maximum Conductor Size Imperial
4/0 AWG
Maximum Conductor Size Metric
120 mm²
Maximum Insulation Outer Diameter Metric
30.0
Minimum Conductor Size Imperial
4/0 AWG
Minimum Conductor Size Metric
120 mm²
Other Details
Cable Accessory Products
Electrical Resins
Cable Shielding
Non-shielded
Conductor Amount
Single
Dielectric Strength (V/mil)
343 V/mil
Flame Retardant
Resin only
Gel Time
17 min 73 °F (23 °C)
Hardness
82 Shore A
Indoor/Outdoor
Both
Number Of Conductors
3
With Screw Connectors
No
Indoor Outdoor
Both
Material and Composition
Shelf Life
36 Month
Color and Appearance
Product Color
Black
Certifications and Standards
Mining Sector Approval
Yes
